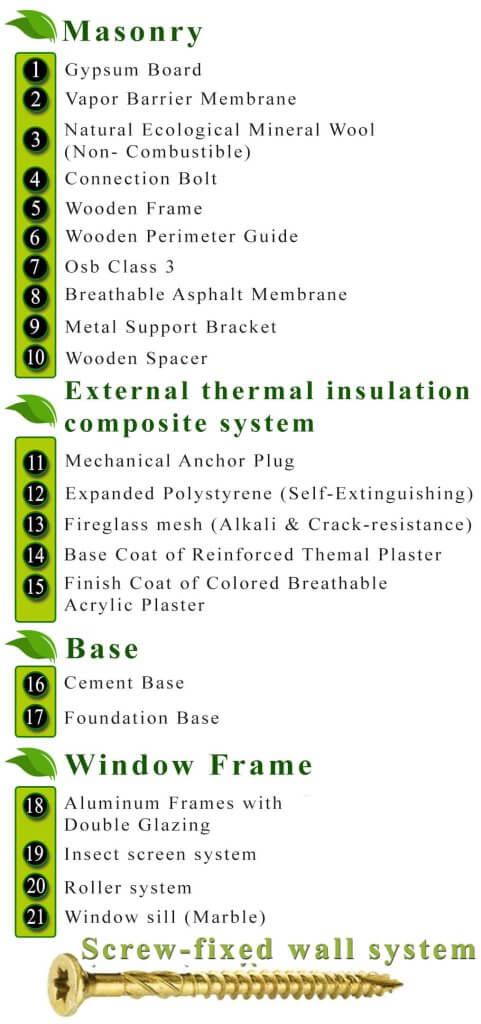

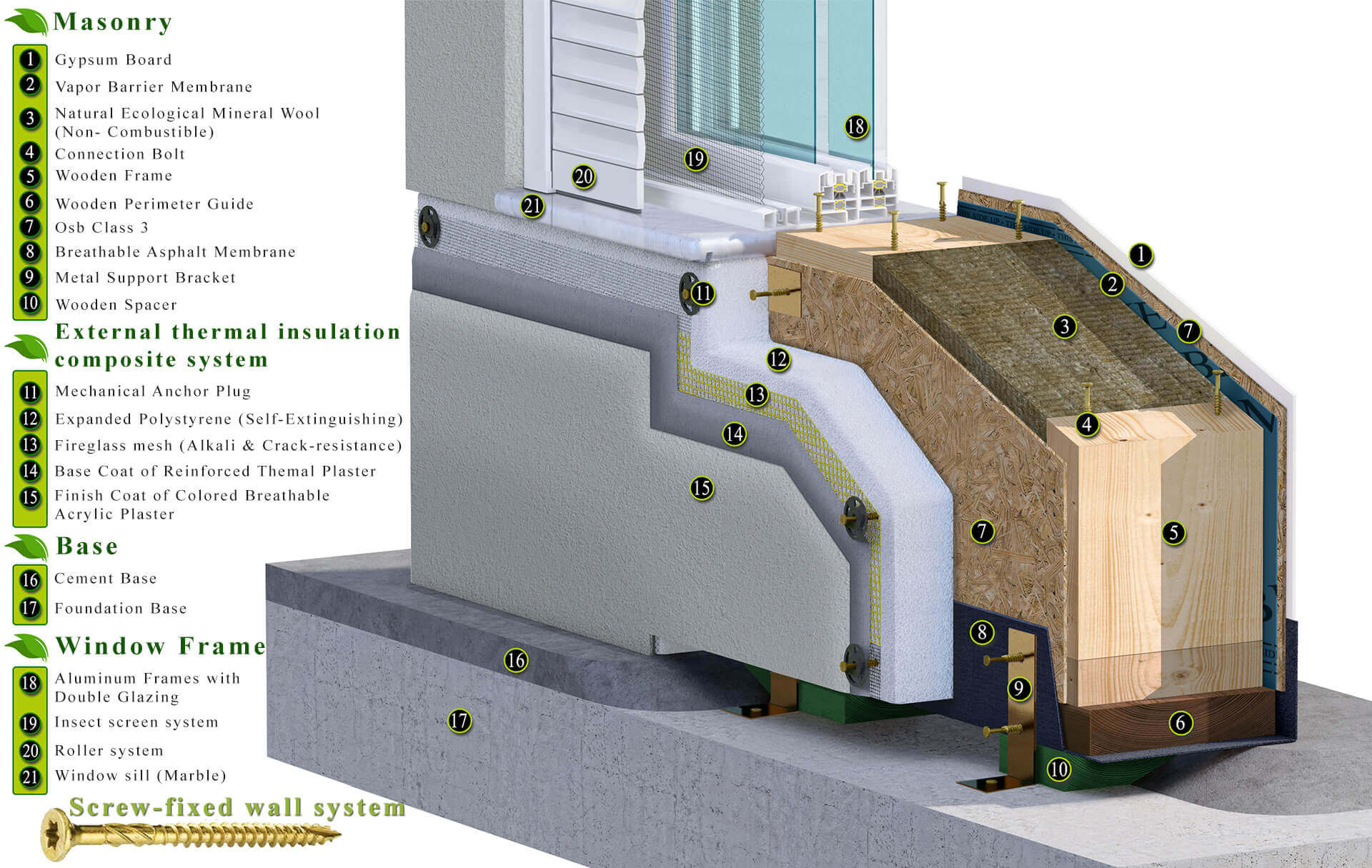

ECO ENERGY EXTERNAL WALL SYSTEM BY ANDROULAKIS

Place the mouse over each material to see a detailed description.

ANDROULAKIS INTERNAL WALL SYSTEM

Place the mouse over each material to see a detailed description.

TECHNOLOGY – MATERIALS

The most modern energy system accompanying the Eco Passive System technology by Androulakis incorporates the best global construction materials:

– Use of ecological Swedish and Scandinavian wood, class C24, kiln-dried, with natural insect protection without chemical impregnation.

– Moisture-resistant OSB (class 3), fully waterproofed, with excellent soundproofing and thermal insulation properties, contributing to better building stability.

– Fully screw construction with TORX screws, providing exceptional stability to the frame with zero loosening over time.

– Use of ecological natural mineral wool Ecose Ultraccoustic Technology by Knauf.

– Graphite-Expanded Polystyrene EPS 150 without chemical additives, self-extinguishing, non-toxic, with a long lifespan.

– Use of natural gypsum boards by Knauf after biological control.

– Use of thermosetting acrylic, fiber-reinforced, elastomeric mortar with color throughout.

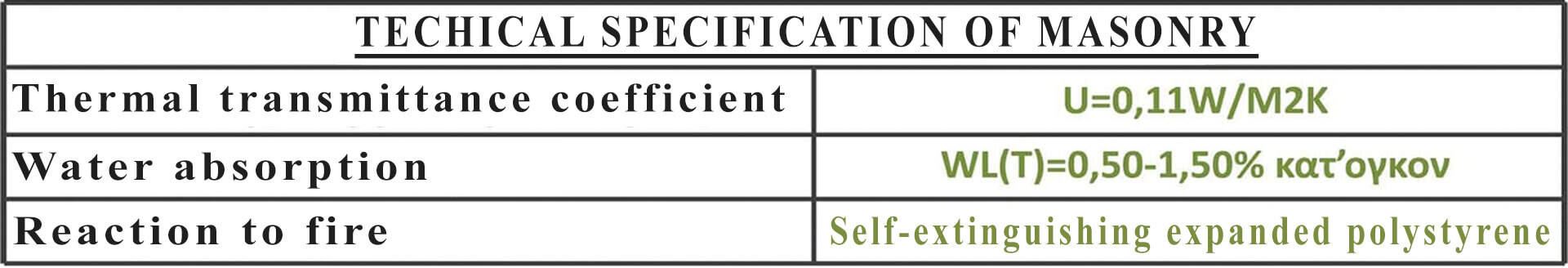

Thermal insulation, sound insulation and waterproofing wall of Eco Energy technology ANDROULAKIS
Coefficient of Thermal Conductivity: U = 0.11 W/m2K.
ECO ENERGY MASONRY EXCEEDS KENAK REQUIREMENTS, IT IS A GREEN BUILDING TECHNOLOGY, HEAVY-TYPE PREFABRICATION

See here in detail the construction materials and their certifications.

THE ECO ENERGY SYSTEM ROOF OF ANDROULAKIS

Εμφανής με Ραμποτέ

Εμφανής με Γυψοσανίδα

Μη Εμφανής με Γυψοσανίδα

The Androulakis roof and masonry complement each other and create as a whole, the bioclimatic, passive Eco Energy Androulakis residence.

* With the ventilated eaves, we achieve ventilation of the roof, release of diffused water vapors and avoid the creation of pockets of stagnant air.

*The air passes through the roof is not trapped and thus we do not have the risk of moisture inside the roof.

* The use of a reflective membrane reflects 98% of the sun’s radiation but also insulates the roof during the winter months resulting in a much cooler roof in the summer and a much warmer roof in the winter.

* We prevent the creation of thermal bridges with the single placement of the layer of expanded polystyrene Eps200.

*The use of expanded polystyrene and a membrane with controlled breathability come to complete the thermal and moisture protection function, creating a roof with excellent energy efficiency and an optimal thermal permeability coefficient U:0.09 w/m2K.

THE ROOFTOP OF ANDROULAKIS

PITCHED ROOF

Place the mouse over each material to see a detailed description.

In case we don’t want a pitched roof but a terrace, we have the option of a pitched roof and a non-pitched roof.

See how the Pitched Roof is constructed.

NON PITCHED ROOF

Place the mouse over each material to see a detailed description.

In case we don’t want a pitched roof but a terrace, we have the option of a pitched roof and a non-pitched roof.

See how the Non Pitched Roof is constructed.

THE INTERMEDIATE FLOOR OF ANDROULAKIS

WITH LAMINATE

Place the mouse over each material to see a detailed description.

See how the ANDROULAKIS intermediate floor is constructed.

WITH TILES

Place the mouse over each material to see a detailed description.

See how the ANDROULAKIS intermediate floor is constructed.
