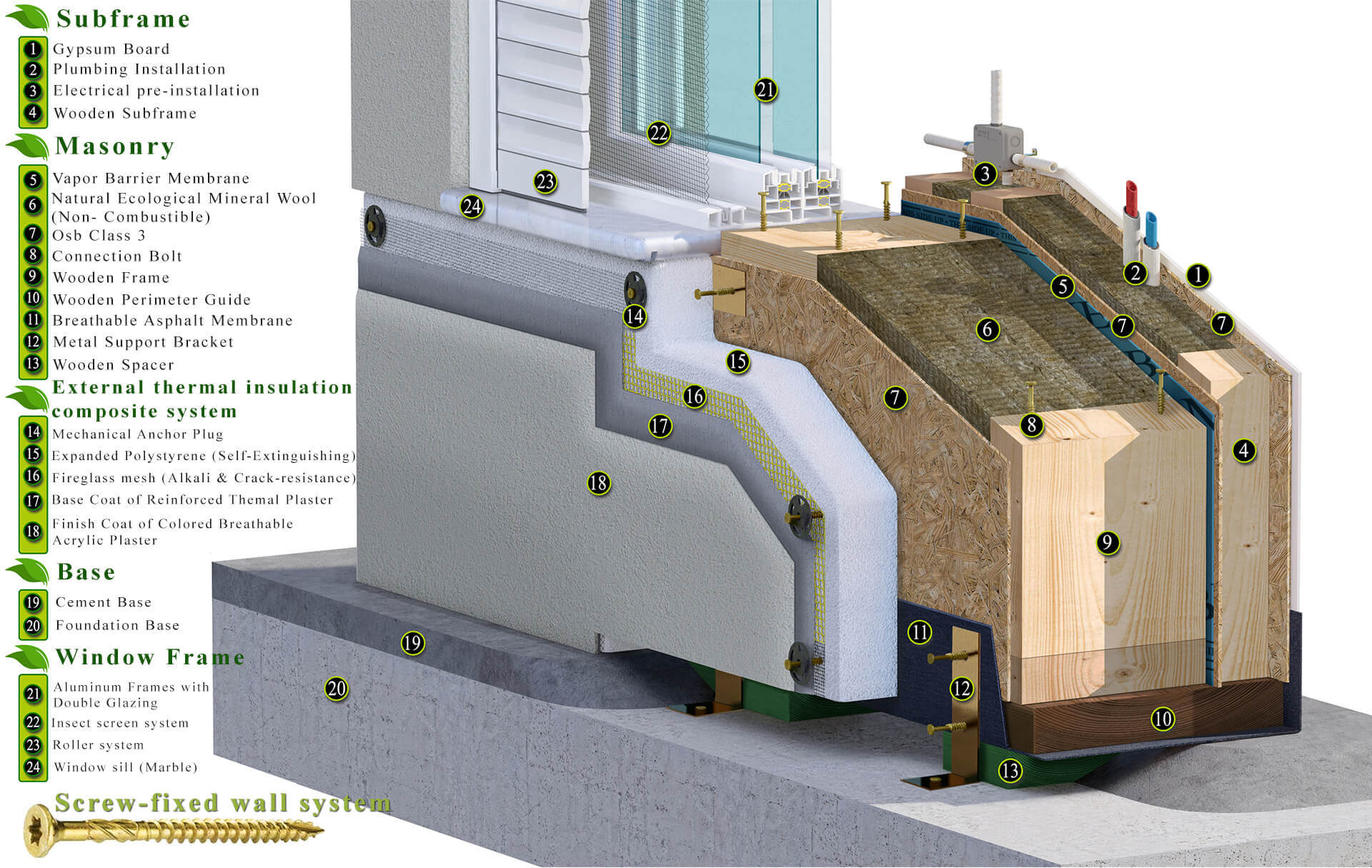

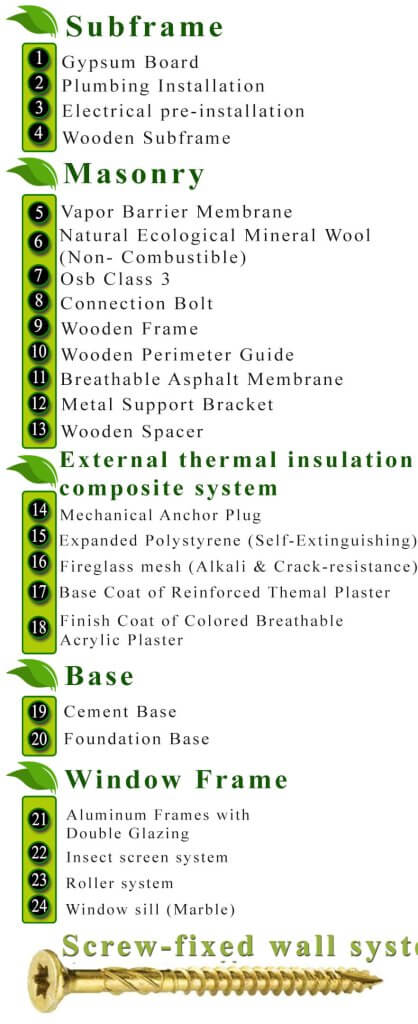

THE EXTERNAL ECO ENERGY PASSIVE MASONRY OF ANDROULAKIS

Place the mouse over each material to see a detailed description.

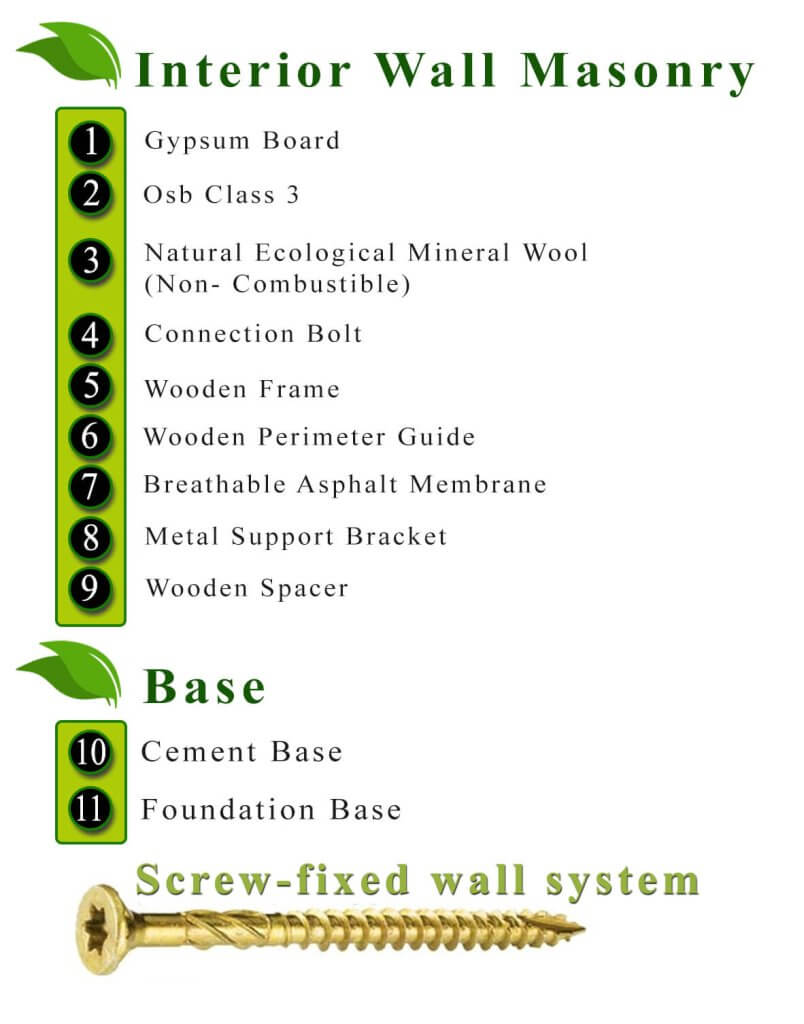

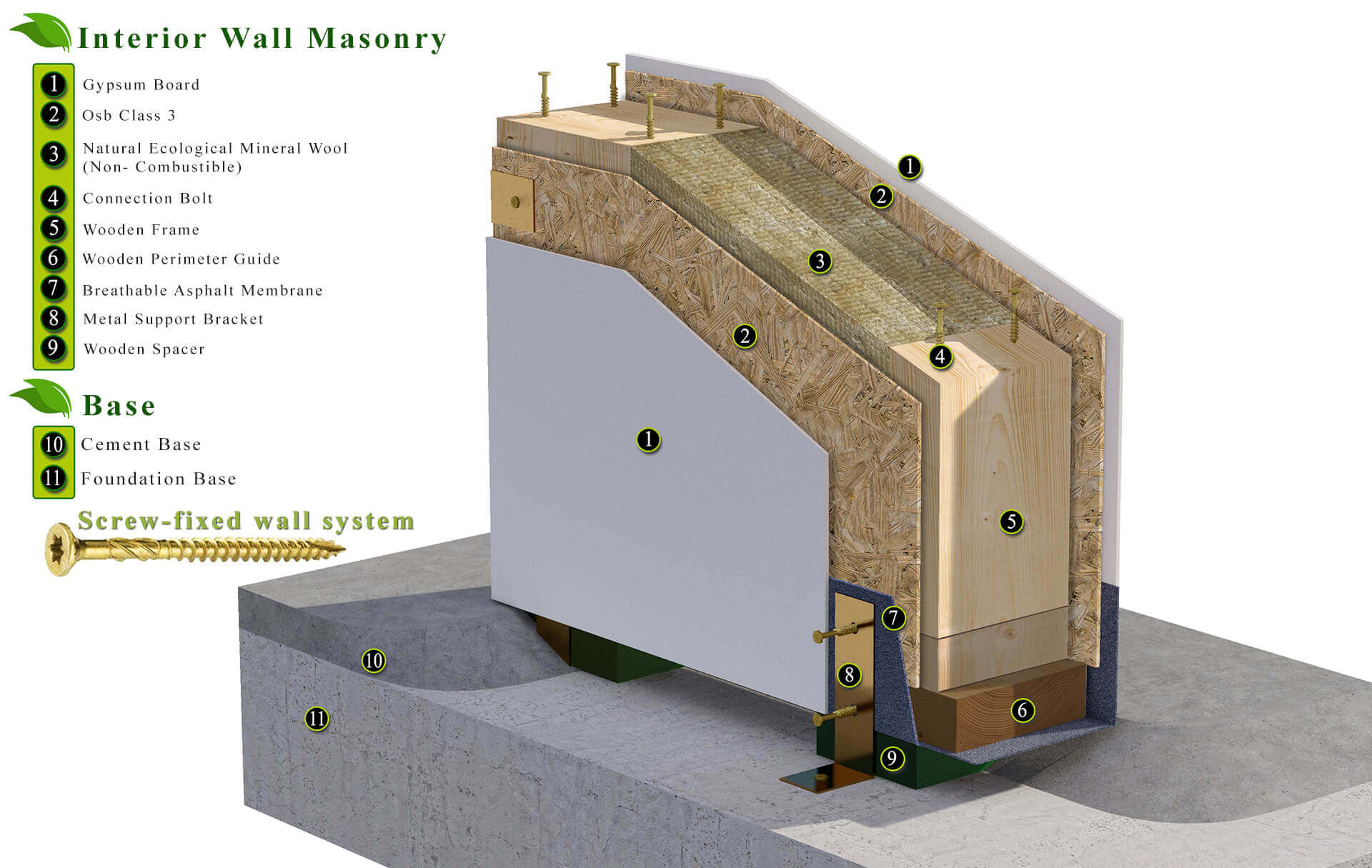

ANDROULAKI’S INTERNAL MASONRY

Place the mouse over each material to see a detailed description.

TECHNOLOGY – MATERIALS

The most modern energy system that accompanies the Eco Passive System technology of Androulakis carries the best building materials on the world market:

• Use of ecological Swedish & Scandinavian wood, class C24, dryer, with natural disinfection without chemical impregnation.

• OSB (class 3) fully waterproofed, with excellent sound insulation & thermal insulation properties, which provides excellent mechanical • strength contributing to the building’s better stability.

• Fully Screwed construction with TORX screws. All elements of the masonry frame are bolted together with top quality Wurth TORX screws & washers, high mechanical strength, which give our frame excellent stability with zero loosening over time.

• Use of ecological natural mineral wool Ecose Ultraccoustic Technology by Knauf.

• Graphite Expanded Polystyrene EPS 150 without chemical additives, self-extinguishing, non-toxic, with a lifetime.

• Use of Knauf natural gypsum plasterboards after biological control.

• Use of acrylic thermal plaster, fiber reinforced, elastomers with color in its mass.

Thermal insulation, sound insulation & waterproofing wall with Eco Passive System technology ANDROULAKIS

The Passive System Homes of our company are classified in energy class A+
They meet the conditions set by the Institute of Passive Buildings.

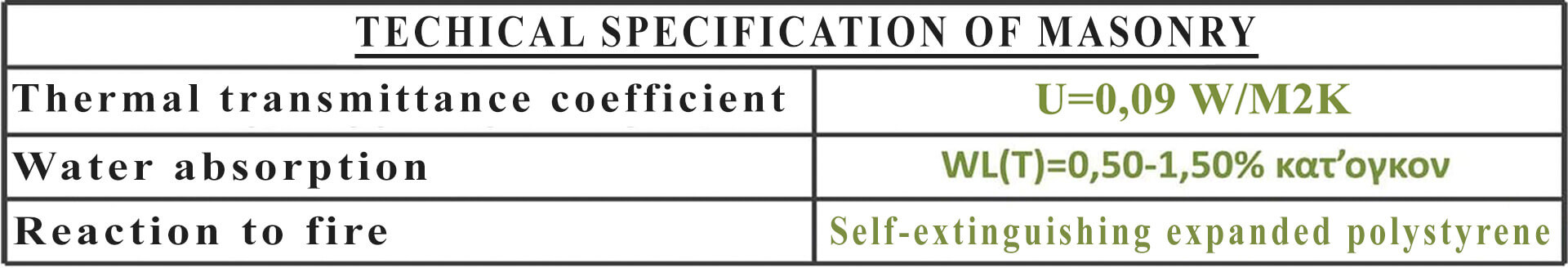

Thermal conductivity coefficient U: 0.09 w/m2K

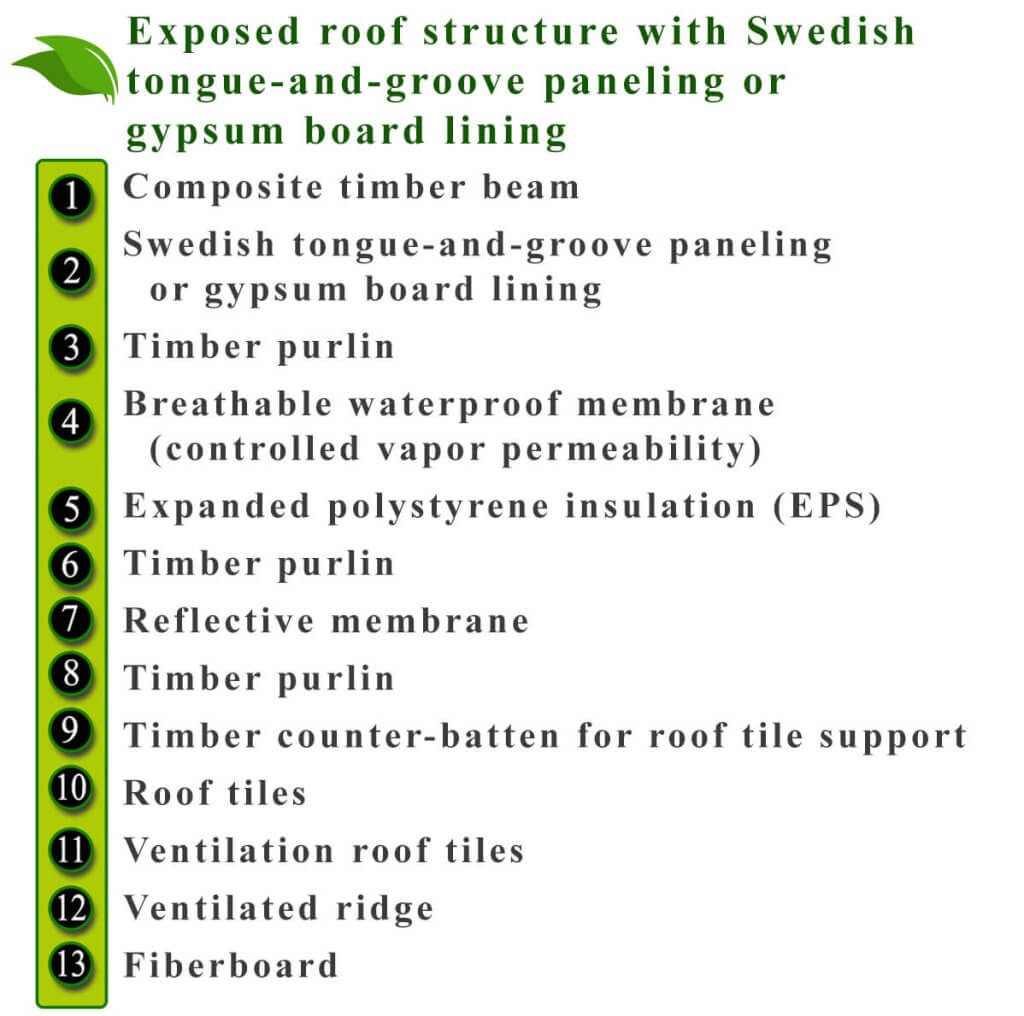

THE ECO PASSIVE SYSTEM ROOF OF ANDROULAKIS

VISIBLE WITH RAMPOTE

VISIBLE WITH GYPSUM BOARD

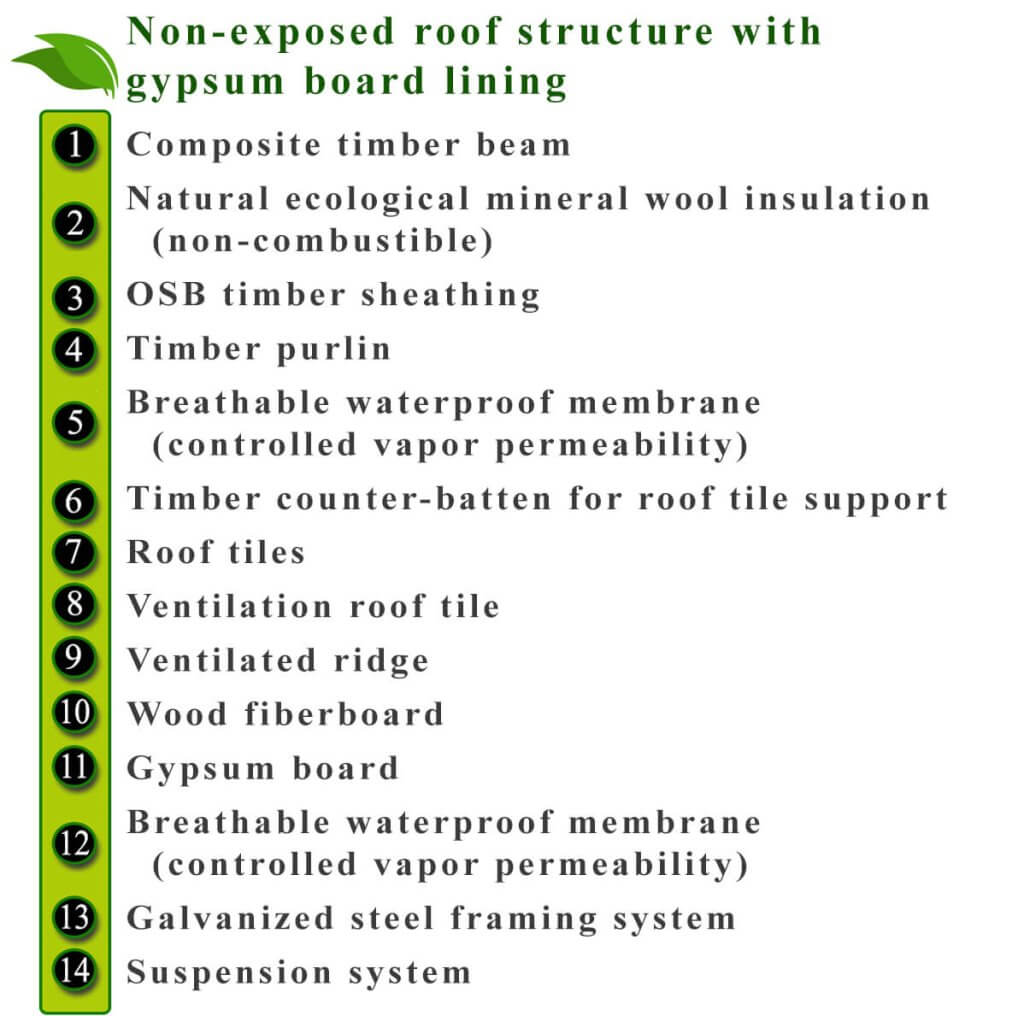

INVISIBLE WITH GYPSUM BOARD

The Androulakis roof and masonry complement each other and create as a whole, the bioclimatic, passive Eco Passive house.

* With the ventilated eaves, we achieve ventilation of the roof, release of diffused water vapors and avoid the creation of pockets of stagnant air.

*The air passes through the roof is not trapped and thus we do not have the risk of moisture inside the roof.

* The use of a reflective membrane reflects 98% of the sun’s radiation but also insulates the roof during the winter months resulting in a much cooler roof in the summer and a much warmer roof in the winter.

* We prevent the creation of thermal bridges with the single placement of the layer of expanded polystyrene Eps200.

*The use of expanded polystyrene and a membrane with controlled breathability come to complete the thermal and moisture protection function, creating a roof with excellent energy efficiency and an optimal thermal permeability coefficient U:0.09 w/m2K.

THE TERRACE OF ANDROULAKIS

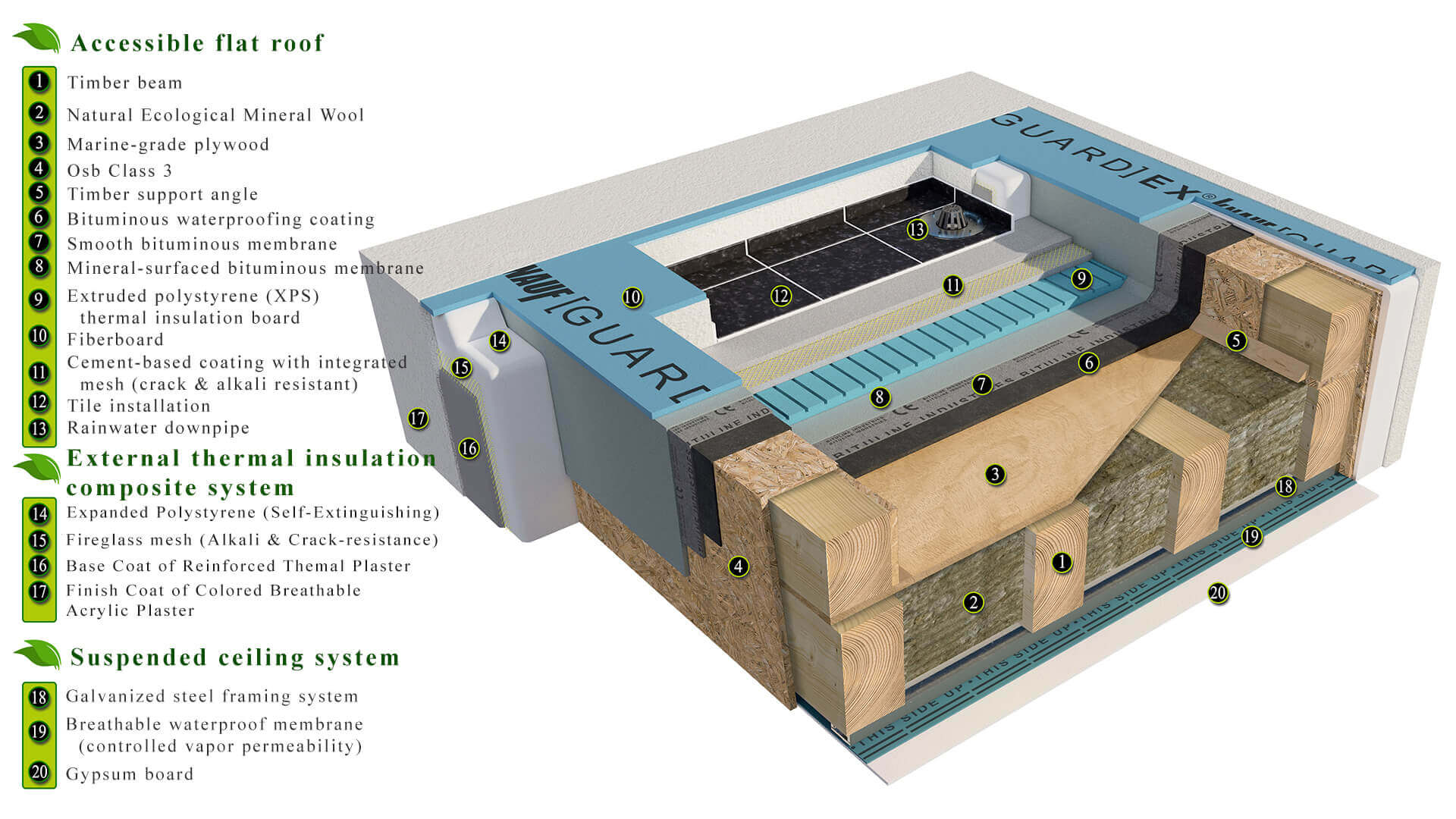

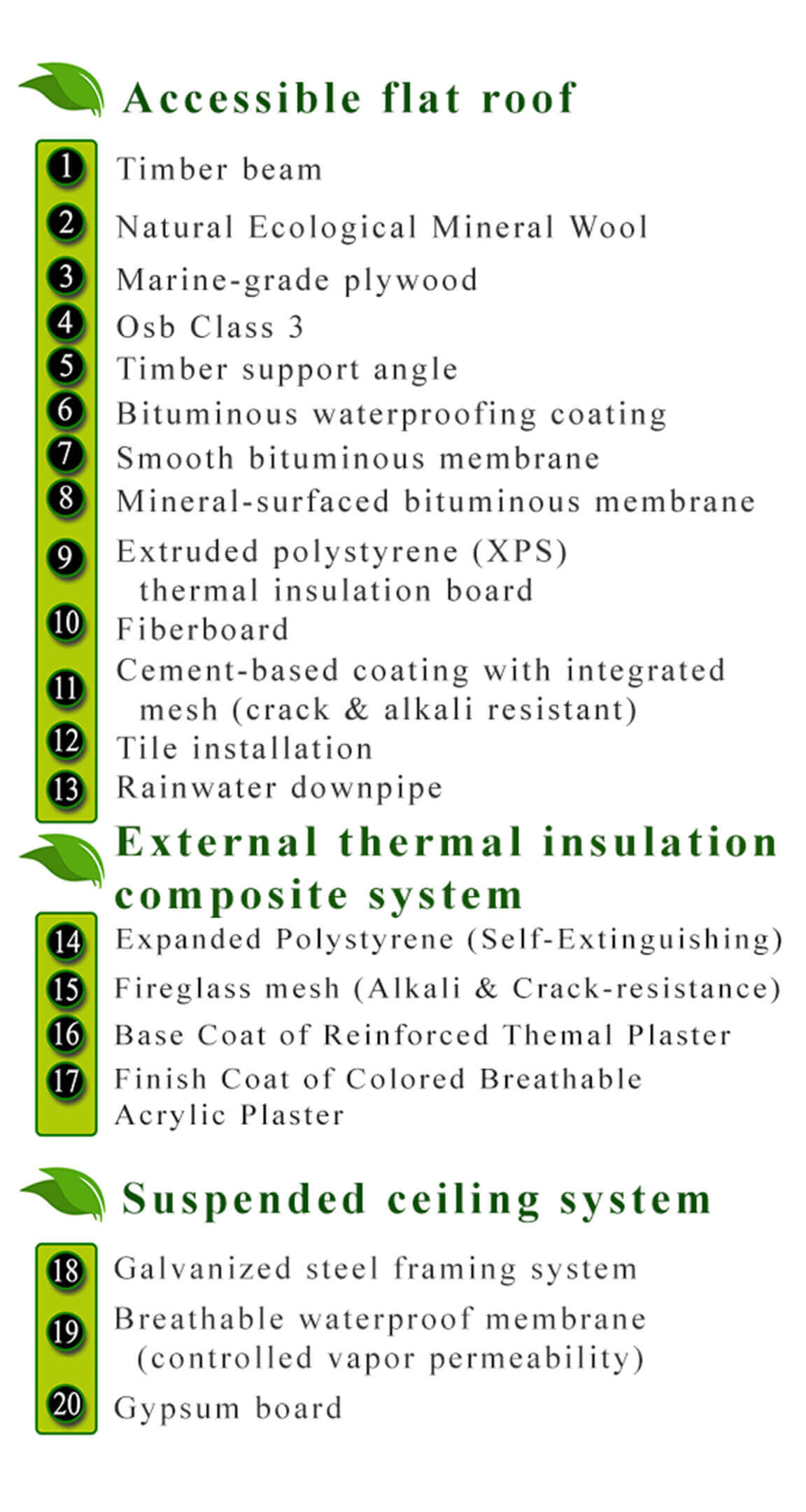

PITCHED ROOF

Place the mouse over each material to see a detailed description.

In case we don’t want a roof but a terrace, we have the option of a Pitched roof and a non pitched roof.

See how the Pitched Roof is built

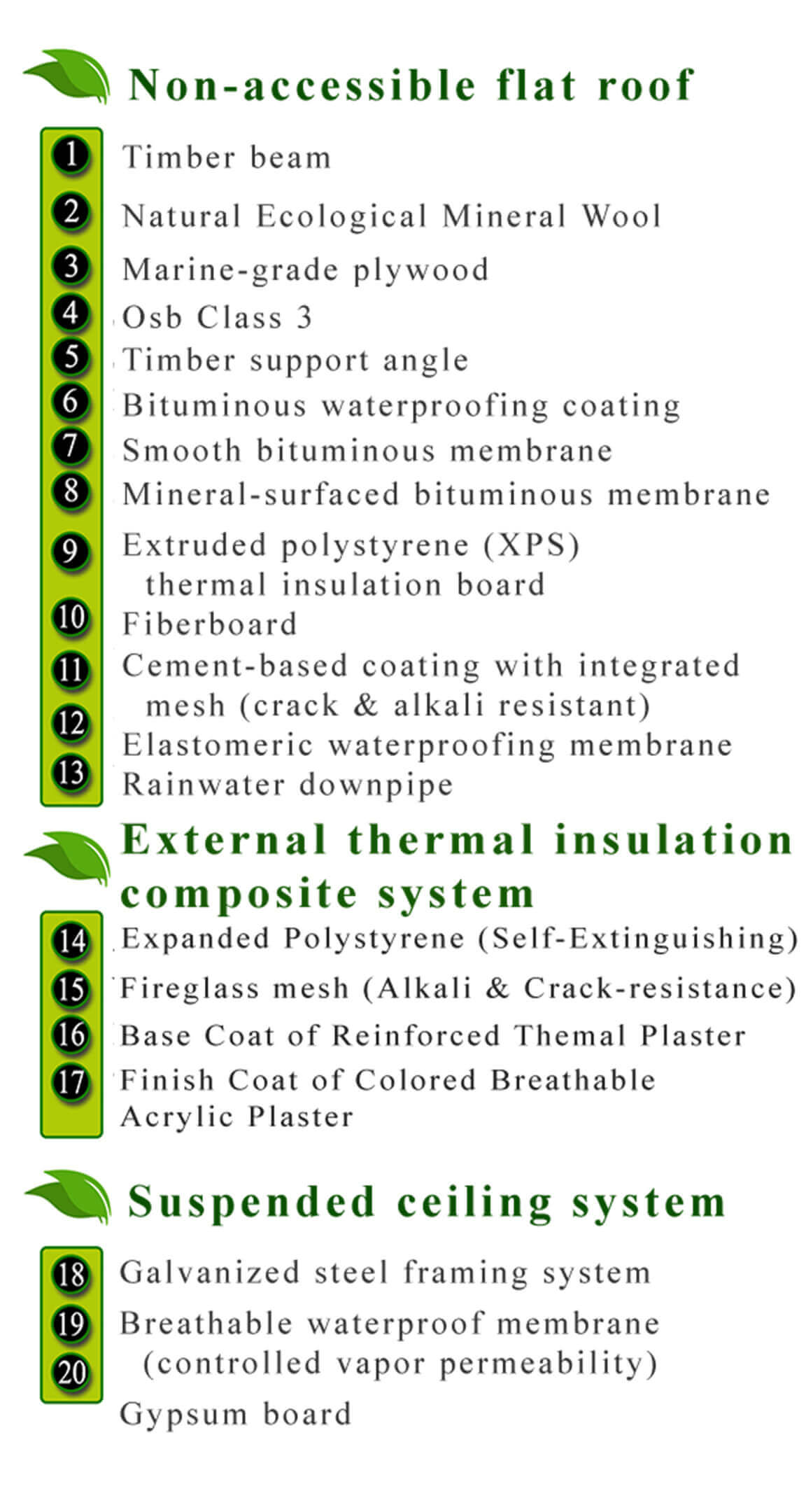

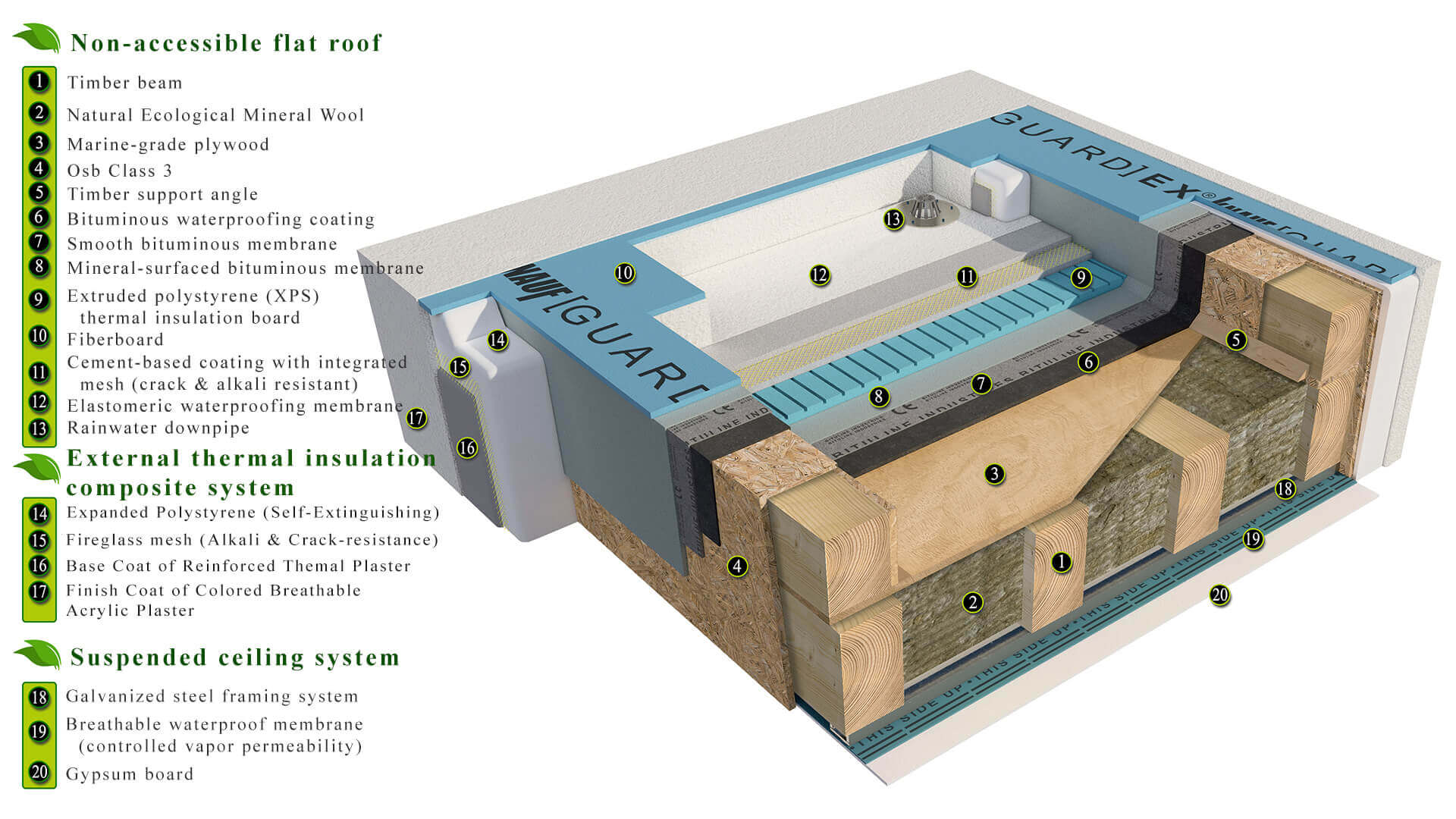

NON PITCHED ROOF

Place the mouse over each material to see a detailed description.

In case we don’t want a roof but a terrace, we have the option of a Pitched roof and a non pitched roof.

See how the Non Pitched Roof is built

THE INTERMEDIATE FLOOR OF ANDROULAKIS

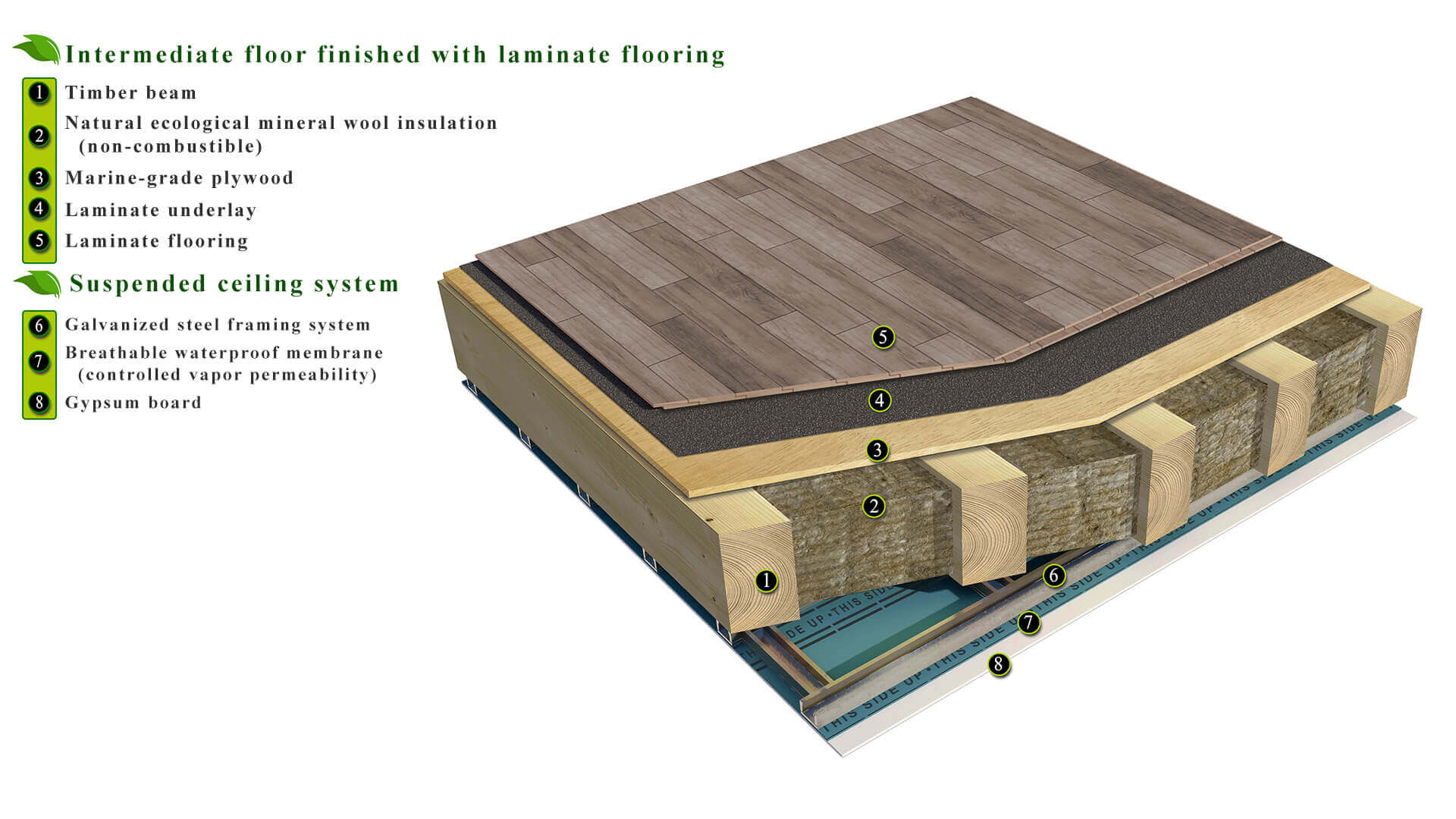

WITH LAMINATE

Place the mouse over each material to see a detailed description.

See how the ANDROULAKIS intermediate floor is constructed.

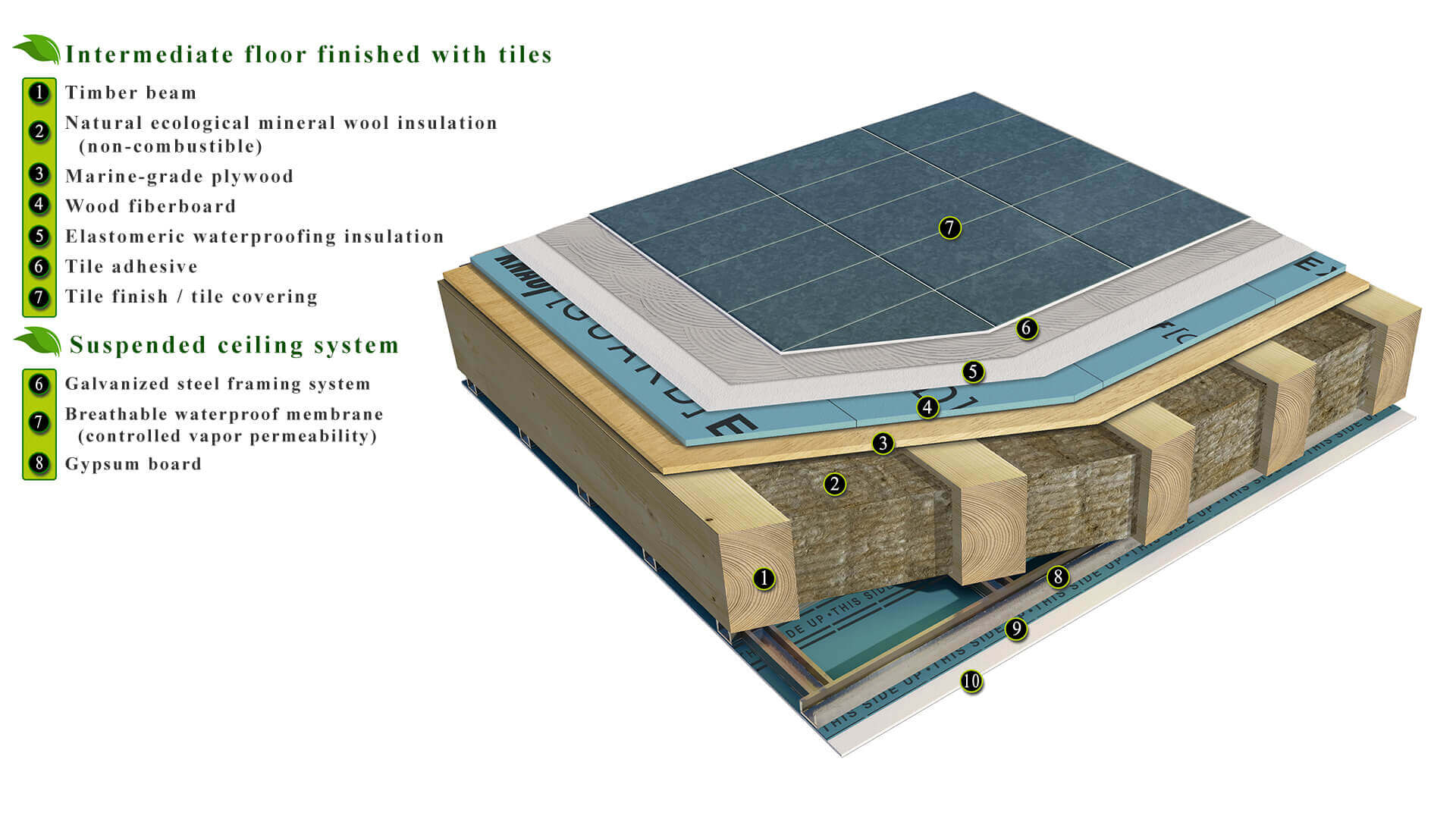

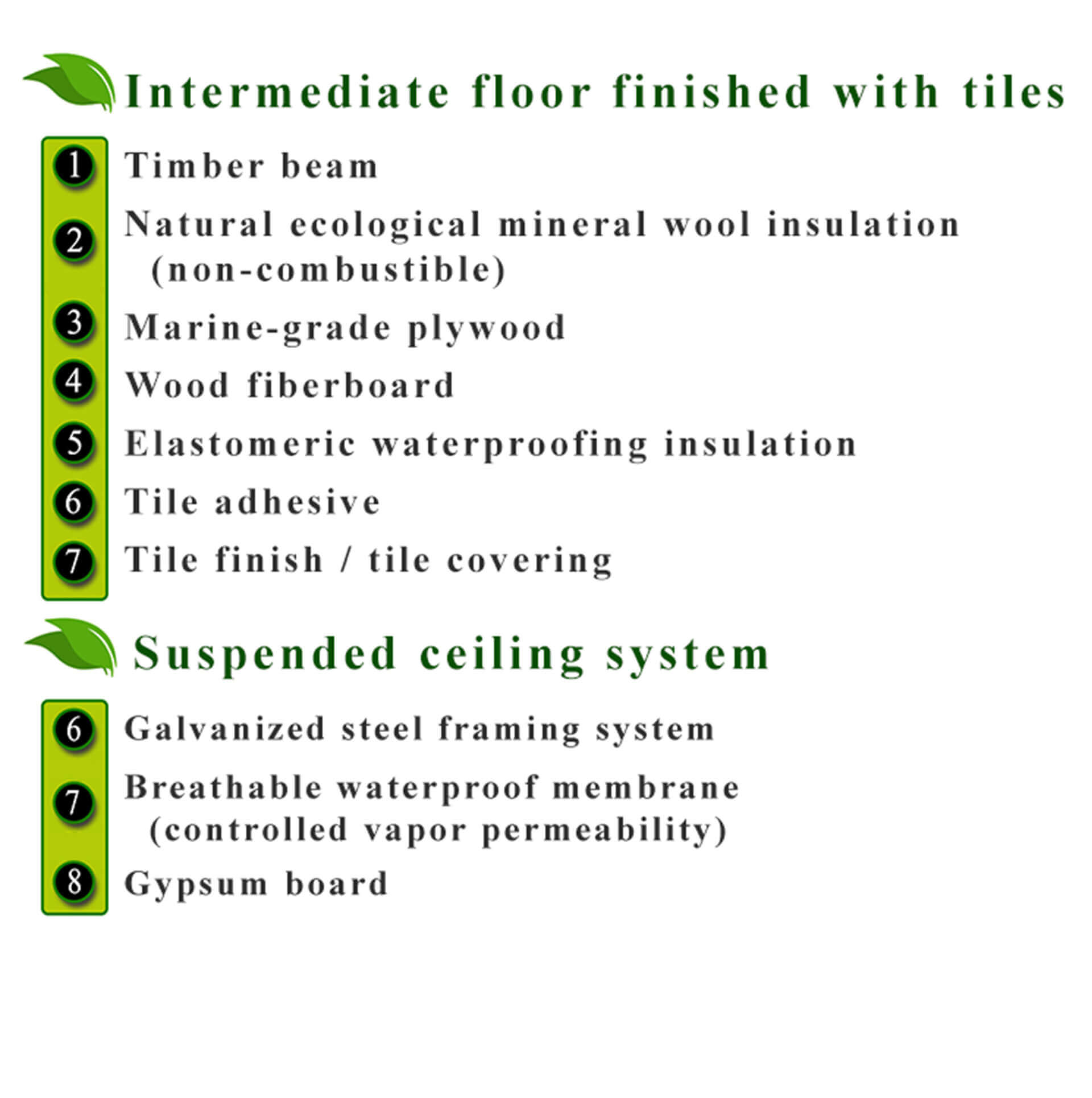

WITH TILES

Place the mouse over each material to see a detailed description.

See how the ANDROULAKIS intermediate floor is constructed.
